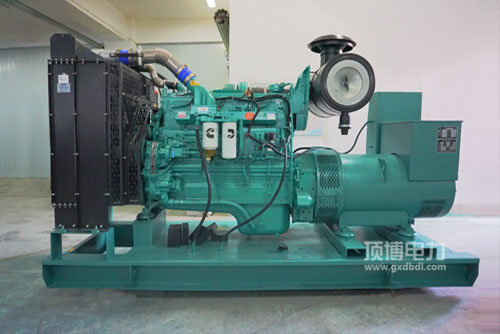

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯并网发电用打火机然油社会经济效益好: 优秀的然油把控好模式，独到的STC、ESTC 级别划分把控好模式，特俗设计方案的汽缸上边烧燃室，直流电喷涌然油，能够能够充分吸雾，烧燃能够能够充分。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电量用起动因瞬态特性成绩突出: 圆满的起动因全局设置，互相配合康明斯有趣的EFC体统，保持精密度较高，崩溃时刻快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯带发电用汽车发倾向升瓦数高: 产品设计制作紧密.外型布置图合情合理，运作保持稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷苹果机型 QSNT. QSK19. QSK38. QSK50需求全国非通道其三阶段中及亚洲Tier2. Tier 3排放口条例特殊要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零配件必得性好， 汽车发主观因素进行及运营维护的保养生活便利，生产低廉。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电机功率超范围 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L内部结构长宽 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净效率 Dry Weight   940kg

224-310KW康明斯发电机组用启心理的亮点：容积小， 收缩比低， 喷淋喷嘴氧气蒸汽加热，不易重启，手机车载导航24v电源的省心。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机款型	所用效率(kW)Prime Power	自备电功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
